High resolution in extreme weather!
The IceEyes heated camera is suitable for:
- Ice detection on power lines
- Validation of measurements
- Live web camera

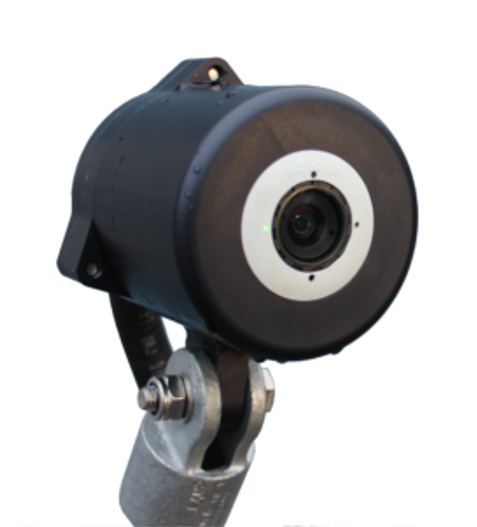

IceEyes – Heated Cameras For Harsh Environments
Description

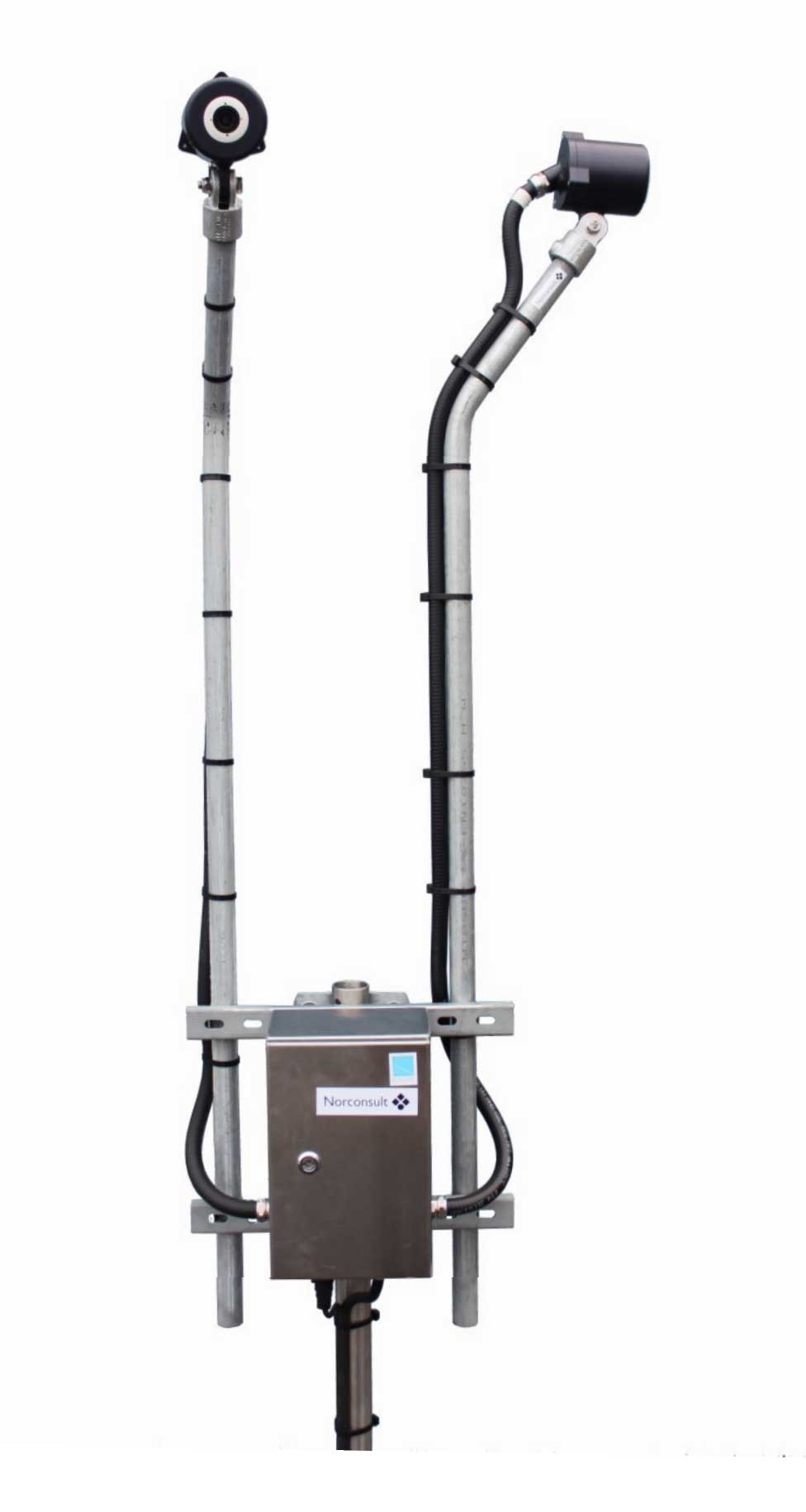

The IceEye heated camera system is used for complete surveillance and monitoring in harsh environments. A versatile two camera system can be used for an array of applications including but not limited to: ice detection on power lines, validation of measurements and as live web cameras for on-demand image capturing. The heated camera system is capable of taking high resolution pictures in remote places during extreme weather conditions. The two cameras provide the possibility for multiple views with different lenses.
| Camera resolution | 320×240 to 3037×2048 pixels |
| Image sensor | 1/1.8″ CMOS 6 MP or 4k |
| Lens models | 35 mm eq. 10 mm – 270 mm |
| Interface Ethernet | 10/100 Mbit, MiniUSB |
| Video output | NTSC, PAL |
| Power Supply | 24 VDC |
| Consumption, heating off | 9.5 VA |
| Consumption, heating on | 115 VA @ full heating, 2 cameras |
| Operating temp. range | -30 to +50 °C |
| Housing | Coated aluminium |
| Mounting rod | Ø33.7 mm |
| Waterproof rating | IP67 |
| Weight | 5 kg |
